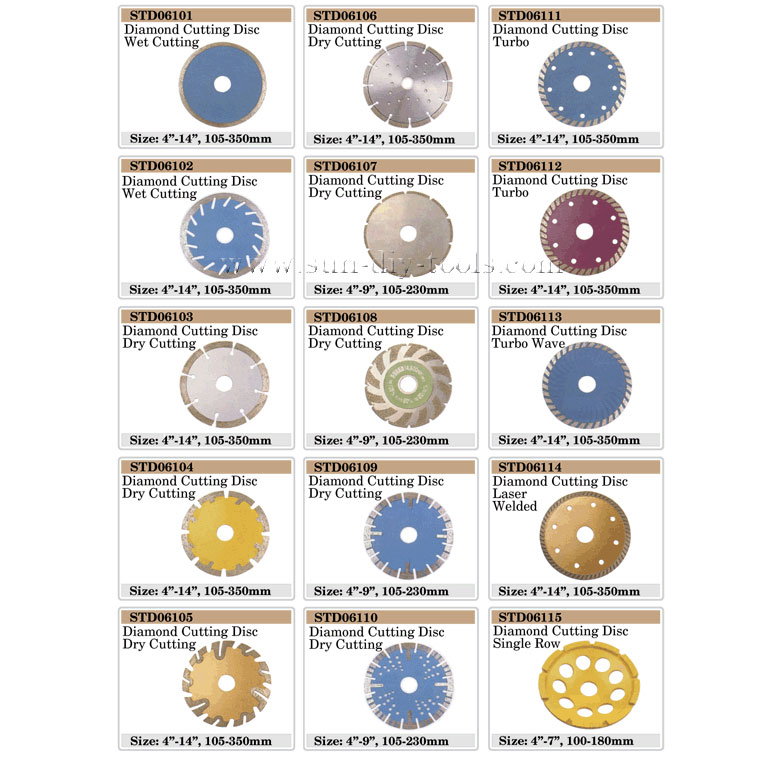

65 Diamond Cutting Disc＆Diamond Cup Wheel

Product Description

Products Numbers: STD060101-115

HOT PRESSED SEGMENTED SAW BLADE
--Applications: Concrete/Granite/Marble/Refractory Materials;
OUTER DIAMETER(D)(MM)		INNER DIAMETER(D)(MM)		SEGMENT HEIGHT(MM)	SEGMENT DIMENSION (T×H×L)(MM)	SEGMENT NUBMER(MM)
INCHES	METRIC	INCHES	METRIC	SEGMENT HEIGHT(MM)	SEGMENT DIMENSION (T×H×L)(MM)	SEGMENT NUBMER(MM)
4”	105	5/8”/4/5”/7/8”	16/20/22.23	7/10/12	1.8×7.0×35	6/7/8
4.3”	110	5/8”/4/5”/7/8”	16/20/22.23	7/10/12	1.9×7.0×32.3	9
4.5”	115	7/8”	22.23	7/10/12	1.9×7.0×38.3	8
5”	125	7/8”	22.23	7/10/12	1.9×7.0×33.5	9
6”	150	7/8”	22.23	7/10/12	2.2×7.0×35	12
7”	180	7/8”/1”/1 1/5”	22.23/25.4/30	7/10/12	2.4×7.0×39.2	14
8”	200	7/8”/1”/1 1/5”	22.23/25.4/30	7/10/12	2.4×7.2×39.2	14
9”	230	7/8”/1”/1 1/5”/2”	22.23/25.4/30/50	7.5/10/12	2.4×7.2×34.4	16/18
10”	250	7/8”/1”/1 1/5”/2”	22.23/25.4/30/50	7.5/10/12	3.0×7.5×37	16/18
12”	300	7/8”/1”/1 1/5”/2”	22.23/25.4/30/50	8/10/12	3.2×7.5×35	22
14”	350	7/8”/1”/1 1/5”/2”	22.23/25.4/30/50	8/10/12	3.2×7.5×40	24

CONTINUOUS TURBO DIAMOND SAW BLADE
--Applications: Concrete/Granite/Marble/Refractory Materials;
OUTER DIAMETER(D)(MM)		INNER DIAMETER(D)(MM)		RIM DIMENSION (T×H)
INCHES	METRIC	INCHES	METRIC	RIM DIMENSION (T×H)
4”	105	5/8”/4/5”/7/8”	16/20/22.23	2.0×7.0
4.3”	110	5/8”/4/5”/7/8”	16/20/22.23	2.0×7.0
4.5”	115	7/8”	22.23	2.2×7.0
5”	125	7/8”	22.23	2.2×7.0
6”	150	7/8”	22.23	2.2×7.0
7”	180	7/8”/1”	22.23/25.4	2.4×7.5
8”	200	7/8”/1”	22.23/25.4	2.6×7.5
9”	230	7/8”/1”	22.23/25.4	2.8×7.5
10”	250	7/8”/1”/1 1/5”/2”	22.23/25.4/30/50	3.0×7.5
12”	300	7/8”/1”/1 1/5”/2”	22.23/25.4/30/50	3.2×8.0
14”	350	7/8”/1”/1 1/5”/2”	22.23/25.4/30/50	3.4×8.0

COLD-PRESSED TURBO SAW BLADE
--Applications: Concrete/Granite/Marble/Refractory Materials;
OUTER DIAMETER(D)(MM)		INNER DIAMETER(D)(MM)		SEGMENT HEIGHT	SEGMENT THICKNESS
INCHES	METRIC	INCHES	METRIC	SEGMENT HEIGHT	SEGMENT THICKNESS
4”	105	5/8”/7/8”	16/20/22.23	7/10/12	2.0
4.3”	110	5/8”/7/8”	16/20/22.23	7/10/12	2.0
4.5”	115	7/8”	22.23	7/10/12	2.2
5”	125	7/8”	22.23	7/10/12	2.3
6”	150	7/8”	22.23	7/10/12	2.2
7”	180	7/8”/1”	22.23/25.4	7/10/12	2.4
8”	200	7/8”/1”	22.23/25.4	7/10/12	2.6
9”	230	7/8”/1”	22.23/25.4	7.5/10/12	2.8
10”	250	7/8”/1”/1 1/5”/2”	22.23/25.4/30/50	7.5/10/12	3.0
12”	300	7/8”/1”/1 1/5”/2”	22.23/25.4/30/50	8/10/12	3.2
14”	350	7/8”/1”/1 1/5”/2”	22.23/25.4/30/50	8/10/12	3.4
16”	400	7/8”/1”/1 1/5”/2”	22.23/25.4/30/50	8/10/12	3.6

COLD-PRESSED TURBO WITH FLANGE SAW BLADE
--Applications: Concrete/Granite/Marble/Refractory Materials;
OUTER DIAMETER(D)(MM)		INNER DIAMETER(D)(MM)		RIM THICKNESS
INCHES	METRIC	INCHES	METRIC	RIM THICKNESS
4.5”	115	7/8”	22.23	2.2
5”	125	7/8”	22.23	2.2
7”	180	7/8”/1”/1 1/5”	22.23/25.4	2.4
9”	230	7/8”/1”/1 1/5”	22.23/25.4	2.6
